Ariens Zero Turn Mowers

MODEL NUMBER 911600
ENGINE Briggs & Stratton® EX 625
ENGINE DISPLACEMENT (IN/CC) 150 cc
CUTTING WIDTH (IN/CM) 21 in / 53.3 cm
CUTTING HEIGHT MIN 1 in / 2.5 cm
CUTTING HEIGHT MAX 4 in / 10.2 cm
CUTTING POSITIONS 7
FUEL CAPACITY (GAL/LTR) 0.3 gal / 1 ltr
WEIGHT 68 lb / 30.8 kg
WHEELS FRONT 8.0 x in - in (20.3 x 0 cm - 0 cm)
WHEELS REAR 10.0 x in - in (25.4 x 0 cm - 0 cm)
PRODUCT WARRANTY 3 years residential use. 90 days commercial use

MODEL NUMBER 911605
ENGINE Briggs & Stratton® EXi 725
ENGINE DISPLACEMENT (IN/CC) 163 cc
DRIVE SYSTEM General Transmission® MA 300
DRIVE WHEEL Front
CUTTING WIDTH (IN/CM) 21 in / 53.3 cm
CUTTING HEIGHT MIN 1 in / 2.5 cm
CUTTING HEIGHT MAX 4 in / 10.2 cm
CUTTING POSITIONS 7
GROUND SPEED FORWARD (MPH/KPH) 3.7 mph / 2.3 kph
FUEL CAPACITY (GAL/LTR) 0.3 gal / 1 ltr
WEIGHT 76 lb / 34.5 kg
WHEELS FRONT 8.0 x in - in (20.3 x 0 cm - 0 cm)
WHEELS REAR 10.0 x in - in (25.4 x 0 cm - 0 cm)
PRODUCT WARRANTY 3 years residential use. 90 days commercial use

MODEL NUMBER 911602
ENGINE Briggs & Stratton® EXi 725 Mow N' Stow®
ENGINE DISPLACEMENT (IN/CC) 163 cc
DRIVE SYSTEM General Transmission® MA 302
DRIVE WHEEL Rear with REFLEX™
CUTTING WIDTH (IN/CM) 21 in / 53.3 cm
CUTTING HEIGHT MIN 1 in / 2.5 cm
CUTTING HEIGHT MAX 4 in / 10.2 cm
CUTTING POSITIONS 7
GROUND SPEED FORWARD (MPH/KPH) 4 mph / 2.5 kph
FUEL CAPACITY (GAL/LTR) 0.3 gal / 1 ltr
WEIGHT 77 lb / 34.9 kg
WHEELS FRONT 8.0 x in - in (20.3 x 0 cm - 0 cm)
WHEELS REAR 10.0 x in - in (25.4 x 0 cm - 0 cm)
PRODUCT WARRANTY 4 years residential use. 90 days commercial use

MODEL NUMBER 911603
ENGINE Briggs & Stratton® EXi 875 Mow N' Stow®
ENGINE DISPLACEMENT (IN/CC) 190 cc
DRIVE SYSTEM General Transmission® MA 302
DRIVE WHEEL Rear with REFLEX™
CUTTING WIDTH (IN/CM) 21 in / 53.3 cm
CUTTING HEIGHT MIN 1 in / 2.5 cm
CUTTING HEIGHT MAX 4 in / 10.2 cm
CUTTING POSITIONS 7
GROUND SPEED FORWARD (MPH/KPH) 4 mph / 2.5 kph
FUEL CAPACITY (GAL/LTR) 0.3 gal / 1 ltr
WEIGHT 83 lb / 37.6 kg
WHEELS FRONT 8.0 x in - in (20.3 x 0 cm - 0 cm)
WHEELS REAR 10.0 x in - in (25.4 x 0 cm - 0 cm)
PRODUCT WARRANTY 4 years residential use. 90 days commercial use

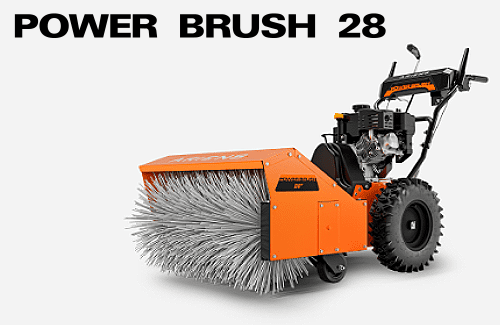

• All-season, all-surface brush clears debris all the way to the ground
• Powered by a strong Ariens® AX engine with 6 forward and 2 reverse speeds
• 40° pivoting brush head (20° left/right), adjustable brush height, large multi-surface tires, and interlocking handles for one-handed operation

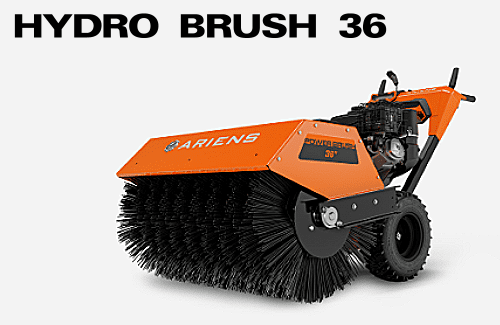

• Powered by a 277cc Kohler® CH395​ engine with Hydrostatic Drive for infinite speed control
• All-season, all-surface brush clears debris all the way to the ground
• 40° pivoting brush head (20° left/right), adjustable brush height, heated handgrips, large multi-surface tires, interlocking handles for one-handed operation, and commercial-grade handlebars

• Powered by 277cc Kohler® CH395 engine with 6 forward and 2 reverse speeds
• All-season, all-surface brush clears debris all the way to the ground
• 40° pivoting brush head (20° left/right), adjustable brush height, heated handgrips, large multi-surface tires, interlocking handles for one-handed operation, and commercial-grade handlebars

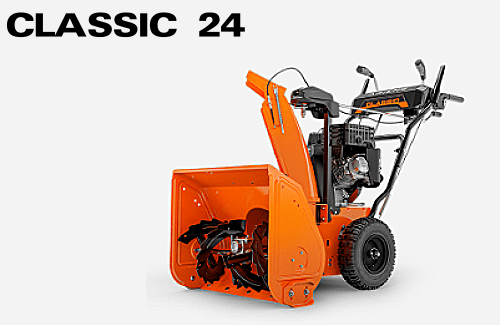

TITLE CLASSIC 24
MODEL NUMBER 920025
ENGINE Ariens AX®
STAGE TYPE Two Stage
CLEARING WIDTH (IN/CM) 24 In / 60.9cm
STARTING SYSTEM 120v / Electric
TIRE SIZE 13 In / 33cm
TIRE TYPE Polar Trac
STEERING Pin-Lock
DRIVE TYPE Disc-O-matic
SPEEDS 6 Forward/2 Reverse
LENGTH 54.4 In / 138.1cm
WIDTH 26.4 In / 67cm
HEIGHT 42.9 In / 108.9cm
WEIGHT 173.3 lb / 78.6 kg
GEAR CASE Aluminum
GEAR CASE WARRANTY 3 Year Consumer, 90 Day Commercial
HOUSING HEIGHT 20 In / 50.7cm
THROWING DISTANCE 3 ft - 40 ft
CHUTE TURNING RADIUS 205
DEFLECTOR CONTROL In-Dash Lever
IMPELLER PROFILE Steel 3 Blade
IMPELLER DIAMETER 12 In / 30.4cm
AUGER DIAMETER 11 In / 27.9cm
AUGER TYPE Steel Serrated
SKID SHOES Steel Reversible
SCRAPER BAR Steel Adjustable
CHUTE ROTATION 2.5x Quick Turn
FEATURES AT A GLANCE Remote Deflector Control: Standard
Drift Cutters: Optional
One Hand Interlock: Standard
PRODUCT WARRANTY 3 years residential use. 90 days commercial use

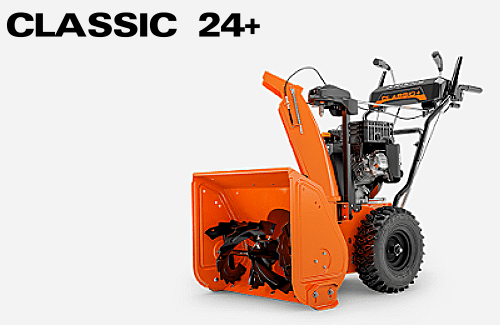

TITLE CLASSIC 24+
MODEL NUMBER 920030
ENGINE Ariens AX®
STAGE TYPE Two Stage
CLEARING WIDTH (IN/CM) 24 In / 60.9cm
STARTING SYSTEM 120v / Electric
TIRE SIZE 15 In / 38.1cm
TIRE TYPE Directional Snow Tread
STEERING Pin-Lock
DRIVE TYPE Disc-O-matic
SPEEDS 6 Forward/2 Reverse
LENGTH 53.3 In / 135.3cm
WIDTH 26.4 In / 67cm
HEIGHT 44 In / 111.7cm
WEIGHT 187 lb / 84.8 kg
GEAR CASE Cast Iron
GEAR CASE WARRANTY 5 Year Consumer, 1 Year Commercial
HOUSING HEIGHT 20 In / 50.7cm
THROWING DISTANCE 3 ft - 40 ft
CHUTE TURNING RADIUS 205
DEFLECTOR CONTROL In-Dash Lever
IMPELLER PROFILE Steel 3 Blade
IMPELLER DIAMETER 12 In / 30.4cm
AUGER DIAMETER 11 In / 27.9cm
AUGER TYPE Steel Serrated
SKID SHOES Steel Reversible
SCRAPER BAR Steel Adjustable
CHUTE ROTATION 2.5x Quick Turn
FEATURES AT A GLANCE Remote Deflector Control: Standard
Drift Cutters: Optional
One Hand Interlock: Standard
PRODUCT WARRANTY 3 years residential use. 90 days commercial use

TITLE COMPACT 24 Auto
MODEL NUMBER 920029
ENGINE Ariens AX®
STAGE TYPE Two Stage
CLEARING WIDTH (IN/CM) 24 In / 60.9cm
STARTING SYSTEM 120v / Electric
TIRE SIZE 15 In / 38.1cm
TIRE TYPE Directional Snow Tread
STEERING Auto-Turn
DRIVE TYPE Disc-O-matic
SPEEDS 6 Forward/2 Reverse
LENGTH 53.3 In / 135.3cm
WIDTH 26.4 In / 67cm
HEIGHT 44 In / 111.7cm
WEIGHT 187 lb / 84.8 kg
GEAR CASE Cast Iron
GEAR CASE WARRANTY 5 Year Consumer, 1 Year Commercial
HOUSING HEIGHT 20 In / 50.7cm
THROWING DISTANCE 3 ft - 40 ft
CHUTE TURNING RADIUS 205
DEFLECTOR CONTROL In-Dash Lever
IMPELLER PROFILE Steel 3 Blade
IMPELLER DIAMETER 12 In / 30.4cm
AUGER DIAMETER 11 In / 27.9cm
AUGER TYPE Steel Serrated
SKID SHOES Steel Reversible
SCRAPER BAR Steel Adjustable
CHUTE ROTATION 2.5x Quick Turn
FEATURES AT A GLANCE Light Type: Halogen
Handwarmers: Optional
Remote Deflector Control: Standard
Drift Cutters: Optional
One Hand Interlock: Standard
PRODUCT WARRANTY 3 years residential use. 90 days commercial use

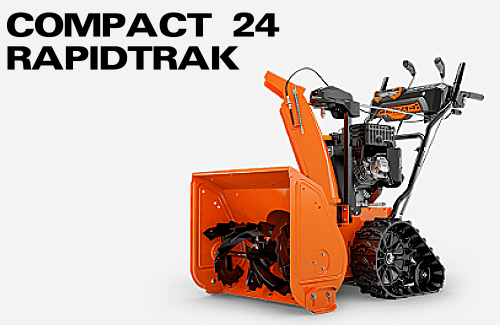

TITLE COMPACT 24 RAPIDTRAK
MODEL NUMBER 920032
ENGINE Ariens AX®
STAGE TYPE Two Stage
CLEARING WIDTH (IN/CM) 24 In
STARTING SYSTEM 120v / Electric
TIRE TYPE Directional Snow Track
STEERING Auto-Turn
DRIVE TYPE Disc-O-matic
SPEEDS 6 Forward/2 Reverse
LENGTH 53.3 In
WIDTH 26.4 In
HEIGHT 44 In
WEIGHT 220 lb
GEAR CASE Cast Iron
GEAR CASE WARRANTY 5 Year Consumer, 1 Year Commercial
HOUSING HEIGHT 20 In
THROWING DISTANCE 3 ft - 40 ft
CHUTE TURNING RADIUS 205
DEFLECTOR CONTROL In-Dash Lever
IMPELLER PROFILE Steel 3 Blade
IMPELLER DIAMETER 12 In
AUGER DIAMETER 11 In
AUGER TYPE Steel Serrated
SKID SHOES Steel Reversible
SCRAPER BAR Steel Adjustable
CHUTE ROTATION 2.5x Quick Turn
FEATURES AT A GLANCE Light Type: LED
Handwarmers: Optional
Remote Deflector Control: Standard
Drift Cutters: Optional
Track Drive: Standard
One Hand Interlock: Standard
PRODUCT WARRANTY 3 years residential use. 90 days commercial use

CROSSOVER 20
MODEL NUMBER 932050
ENGINE Ariens AX®
ENGINE DISPLACEMENT (IN/CC) 179
STAGE TYPE Two Stage
CLEARING WIDTH (IN/CM) 20 In / 50.7cm
STARTING SYSTEM 120v / Electric
TIRE SIZE 14 In / 35.5cm
TIRE TYPE Tread Cap
DRIVE TYPE Auger Propelled
SPEEDS 1 Forward
LENGTH 48 In / 121.9cm
WIDTH 21 In / 53.3cm
HEIGHT 42 In / 106.6cm
WEIGHT 129 lb / 58.5 kg
GEAR CASE Aluminum
GEAR CASE WARRANTY 3 Year Consumer, 90 Day Commercial
HOUSING HEIGHT 19 In / 48.2cm
THROWING DISTANCE 3 ft - 35 ft
CHUTE TURNING RADIUS 205
DEFLECTOR CONTROL Manual
IMPELLER PROFILE Steel 3 Blade
IMPELLER DIAMETER 10 In / 25.3cm
AUGER DIAMETER 11 In / 27.9cm
AUGER TYPE Steel with Rubber Lining
SCRAPER BAR Steel Adjustable
CHUTE ROTATION Manual
PRODUCT WARRANTY 3 years residential use. 90 days commercial use

TITLE DELUXE 24
MODEL NUMBER 921045
ENGINE Ariens AX®
STAGE TYPE Two Stage
CLEARING WIDTH (IN/CM) 24 In / 60.9cm
STARTING SYSTEM 120v / Electric
TIRE SIZE 16 In / 40.6cm
TIRE TYPE Directional Snow Tread
STEERING Auto-Turn
DRIVE TYPE Disc-O-matic
SPEEDS 6 Forward/2 Reverse
LENGTH 58.6 In / 148.8cm
WIDTH 26.4 In / 67cm
HEIGHT 45.3 In / 115cm
WEIGHT 245.5 lb / 111.3 kg
GEAR CASE Cast Iron
GEAR CASE WARRANTY 5 Year Consumer, 1 Year Commercial
HOUSING HEIGHT 21 In / 53.3cm
THROWING DISTANCE 3 ft - 50 ft
CHUTE TURNING RADIUS 200
DEFLECTOR CONTROL In-Dash Lever
IMPELLER PROFILE Steel 3 Blade
IMPELLER DIAMETER 14 In / 35.5cm
AUGER DIAMETER 14 In / 35.5cm
AUGER TYPE Steel Serrated
SKID SHOES Steel Reversible
SCRAPER BAR Steel Adjustable
CHUTE ROTATION 2.5x Ice Drill
FEATURES AT A GLANCE Light Type: LED
Handwarmers: Optional
Remote Deflector Control: Standard
Drift Cutters: Optional
One Hand Interlock: Standard
PRODUCT WARRANTY 3 years residential use. 90 days commercial use

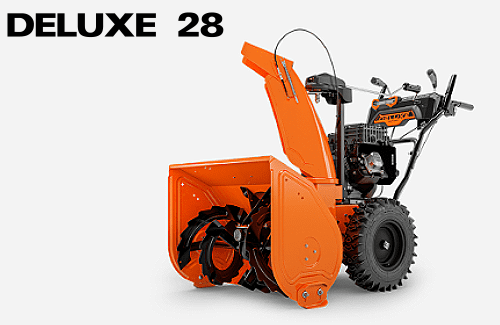

TITLE DELUXE 28
MODEL NUMBER 921046
ENGINE Ariens AX®
STAGE TYPE Two Stage
CLEARING WIDTH (IN/CM) 28 In / 71.1cm
STARTING SYSTEM 120v / Electric
TIRE SIZE 16 In / 40.6cm
TIRE TYPE Directional Snow Tread
STEERING Auto-Turn
DRIVE TYPE Disc-O-matic
SPEEDS 6 Forward/2 Reverse
LENGTH 58.6 In / 148.8cm
WIDTH 29.9 In / 75.9cm
HEIGHT 45.3 In / 115cm
WEIGHT 249.8 lb / 113.3 kg
GEAR CASE Cast Iron
GEAR CASE WARRANTY 5 Year Consumer, 1 Year Commercial
HOUSING HEIGHT 21 In / 53.3cm
THROWING DISTANCE 3 ft - 50 ft
CHUTE TURNING RADIUS 200
DEFLECTOR CONTROL In-Dash Lever
IMPELLER PROFILE Steel 3 Blade
IMPELLER DIAMETER 14 In / 35.5cm
AUGER DIAMETER 14 In / 35.5cm
AUGER TYPE Steel Serrated
SKID SHOES Steel Reversible
SCRAPER BAR Steel Adjustable
CHUTE ROTATION 2.5x Ice Drill
FEATURES AT A GLANCE Light Type: LED
Handwarmers: Optional
Remote Deflector Control: Standard
Drift Cutters: Optional
One Hand Interlock: Standard
PRODUCT WARRANTY 3 years residential use. 90 days commercial use

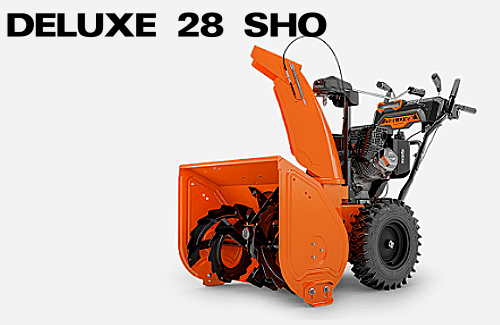

TITLE DELUXE 28 SHO
MODEL NUMBER 921048
ENGINE Ariens AX®
STAGE TYPE Two Stage
CLEARING WIDTH (IN/CM) 28 In / 71.1cm
STARTING SYSTEM 120v / Electric
TIRE SIZE 16 In / 40.6cm
TIRE TYPE Directional Snow Tread
STEERING Auto-Turn
DRIVE TYPE Disc-O-matic
SPEEDS 6 Forward/2 Reverse
LENGTH 58.6 In / 148.8cm
WIDTH 29.9 In / 75.9cm
HEIGHT 45.3 In / 115cm
WEIGHT 267.5 lb / 121.3 kg
GEAR CASE Cast Iron
GEAR CASE WARRANTY 5 Year Consumer, 1 Year Commercial
HOUSING HEIGHT 21 In / 53.3cm
THROWING DISTANCE 3 ft - 55 ft
CHUTE TURNING RADIUS 200
DEFLECTOR CONTROL In-Dash Lever
IMPELLER PROFILE High Speed Steel 3 Blade
IMPELLER DIAMETER 14 In / 35.5cm
AUGER DIAMETER 14 In / 35.5cm
AUGER TYPE Steel Serrated
SKID SHOES Steel Reversible
SCRAPER BAR Steel Adjustable
CHUTE ROTATION 2.5x Ice Drill
FEATURES AT A GLANCE Light Type: LED
Handwarmers: Optional
Remote Deflector Control: Standard
Drift Cutters: Optional
One Hand Interlock: Standard
PRODUCT WARRANTY 3 years residential use. 90 days commercial use

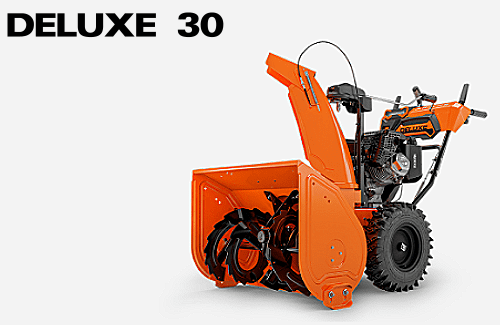

TITLE DELUXE 30
MODEL NUMBER 921047
ENGINE Ariens AX®
STAGE TYPE Two Stage
CLEARING WIDTH (IN/CM) 30 In / 76.2cm
STARTING SYSTEM 120v / Electric
TIRE SIZE 16 In / 40.6cm
TIRE TYPE Directional Snow Tread
STEERING Auto-Turn
DRIVE TYPE Disc-O-matic
SPEEDS 6 Forward/2 Reverse
LENGTH 58.3 In / 148cm
WIDTH 32.4 In / 82.2cm
HEIGHT 45.5 In / 115.5cm
WEIGHT 275.6 lb / 125 kg
GEAR CASE Cast Iron
GEAR CASE WARRANTY 5 Year Consumer, 1 Year Commercial
HOUSING HEIGHT 21 In / 53.3cm
THROWING DISTANCE 3 ft - 50 ft
CHUTE TURNING RADIUS 200
DEFLECTOR CONTROL In-Dash Lever
IMPELLER PROFILE Steel 3 Blade
IMPELLER DIAMETER 14 In / 35.5cm
AUGER DIAMETER 14 In / 35.5cm
AUGER TYPE Steel Serrated
SKID SHOES Steel Reversible
SCRAPER BAR Steel Adjustable
CHUTE ROTATION 2.5x Ice Drill
FEATURES AT A GLANCE Light Type: LED
Handwarmers: Standard
Remote Deflector Control: Standard
Drift Cutters: Optional
One Hand Interlock: Standard
PRODUCT WARRANTY 3 years residential use. 90 days commercial use

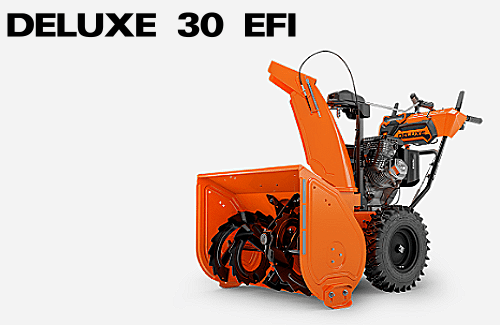

TITLE DELUXE 30 EFI
MODEL NUMBER 921049
ENGINE Ariens AX®
STAGE TYPE Two Stage
CLEARING WIDTH (IN/CM) 30 In / 76.2cm
STARTING SYSTEM 120v / Electric
TIRE SIZE 16 In / 40.6cm
TIRE TYPE Directional Snow Tread
STEERING Auto-Turn
DRIVE TYPE Disc-O-matic
SPEEDS 6 Forward/2 Reverse
LENGTH 58.3 In / 148cm
WIDTH 32.4 In / 82.2cm
HEIGHT 45.5 In / 115.5cm
WEIGHT 275.6 lb / 125 kg
GEAR CASE Cast Iron
GEAR CASE WARRANTY 5 Year Consumer, 1 Year Commercial
HOUSING HEIGHT 21 In / 53.3cm
THROWING DISTANCE 3 ft - 50 ft
CHUTE TURNING RADIUS 200
DEFLECTOR CONTROL In-Dash Lever
IMPELLER PROFILE Steel 3 Blade
IMPELLER DIAMETER 14 In / 35.5cm
AUGER DIAMETER 14 In / 35.5cm
AUGER TYPE Steel Serrated
SKID SHOES Steel Reversible
SCRAPER BAR Steel Adjustable
CHUTE ROTATION 2.5x Ice Drill
FEATURES AT A GLANCE Light Type: LED
Handwarmers: Standard
Remote Deflector Control: Standard
Drift Cutters: Optional
One Hand Interlock: Standard
PRODUCT WARRANTY 3 years residential use. 90 days commercial use

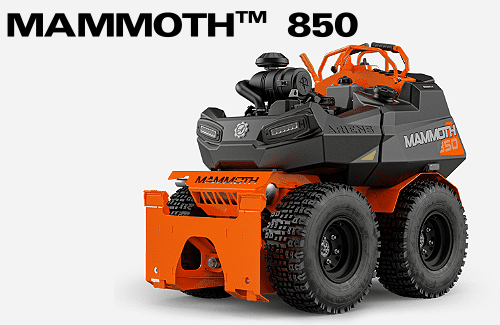

TITLE MAMMOTH™ 850
MODEL NUMBER 951001
ENGINE Kawasaki 850V
ENGINE DISPLACEMENT (IN/CC) 852
HORSEPOWER 28.5
FUEL CAPACITY (GAL/LTR) 10 gal / 37.8 ltr
TIRE SIZE 22.5 In
TIRE TYPE Kenda Terra Trac
DRIVE TYPE 4-wheel independent
SPEEDS 8 forward / 4 reverse
TURNING Zero Turn
LENGTH 68.4 In / 173.7cm
WIDTH 35.8 In / 90.9cm
HEIGHT 50.6 In / 128.5cm
WEIGHT 1072 lb / 486.2 kg
WHEELBASE 24 In / 24cm
BATTERY (CCA) 220
LIGHTING FORWARD Dual LED
LIGHTING REAR Single LED
PRODUCT WARRANTY 2 years / 500 hours

Part Number: 851002
This all-steel snow remover can throw snow over 60 feet and is easily controlled with the touch of a joystick on the dash. Steel scraper blades and skid shoes are standard.

Part Number: 851001
This all-steel snow remover can throw snow over 60 feet and is easily controlled with the touch of a joystick on the dash. Steel scraper blades and skid shoes are standard.

Part Number: 851003
This thick scraper blade pivots left and right 30 degrees and is easily adjustable with the electric joystick.

Part Number: 851007
A plow with the versatility to tackle any site; quickly changes between vee, straight, or scoop modes. All steel construction, thick scraper blade, and trip-edge design allow you to clear right down to the pavement.

Part Number: 851006
This stainless-steel rear-mounted unit features 2.0 cubic feet of capacity, an adjustable drop width of 30, 33, and 36 inches, and a digital variable speed controller on the dash.

Part Number: 851004
Clears down to the surface making it perfect for zero-tolerance properties. Individual polymer bristle discs are easy to replace when worn.

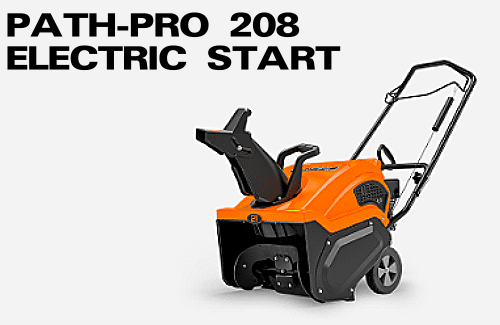

TITLE PATH-PRO 208 ELECTRIC START
MODEL NUMBER 938032
ENGINE Ariens AX®
STAGE TYPE Single Stage
CLEARING WIDTH (IN/CM) 21 In / 53.3cm
STARTING SYSTEM 120v / Electric
TIRE SIZE 7.5 In / 19cm
TIRE TYPE Semi-Pneumatic
DRIVE TYPE Auger Propelled
SPEEDS 1 Forward
LENGTH 54.3 In / 137.9cm
WIDTH 21.6 In / 54.8cm
HEIGHT 40.9 In / 103.8cm
WEIGHT 95 lb / 43 kg
HOUSING HEIGHT 12.2 In / 30.9cm
THROWING DISTANCE 3 ft - 35 ft
CHUTE TURNING RADIUS 210
DEFLECTOR CONTROL Manual
AUGER DIAMETER 8.4 In / 21.2cm
AUGER TYPE Reinforced Rubber
SCRAPER BAR Polymer Adjustable
CHUTE ROTATION Manual
PRODUCT WARRANTY 3 years residential use. 90 days commercial use

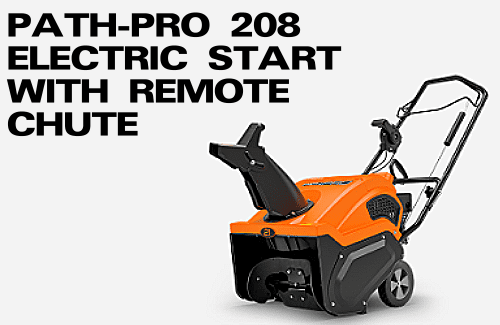

TITLE PATH-PRO 208 ELECTRIC START WITH REMOTE CHUTE
MODEL NUMBER 938033
ENGINE Ariens AX®
STAGE TYPE Single Stage
CLEARING WIDTH (IN/CM) 21 In / 53.3cm
STARTING SYSTEM 120v / Electric
TIRE SIZE 7.5 In / 19cm
TIRE TYPE Semi-Pneumatic
DRIVE TYPE Auger Propelled
SPEEDS 1 Forward
LENGTH 54.3 In / 137.9cm
WIDTH 21.6 In / 54.8cm
HEIGHT 40.9 In / 103.8cm
WEIGHT 97 lb / 43.9 kg
HOUSING HEIGHT 12.2 In / 30.9cm
THROWING DISTANCE 3 ft - 35 ft
CHUTE TURNING RADIUS 210
DEFLECTOR CONTROL Manual
AUGER DIAMETER 8.4 In / 21.2cm
AUGER TYPE Reinforced Rubber
SCRAPER BAR Polymer Adjustable
CHUTE ROTATION Remote
PRODUCT WARRANTY 3 years residential use. 90 days commercial use

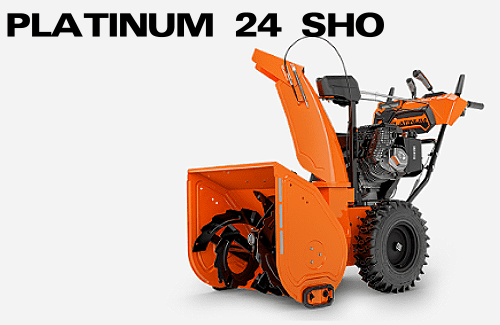

TITLE PLATINUM 24 SHO
MODEL NUMBER 921063
ENGINE Ariens AX®
STAGE TYPE Two Stage
CLEARING WIDTH (IN/CM) 24 In
STARTING SYSTEM 120v / Electric
TIRE SIZE 16 In
TIRE TYPE Directional Snow Tread
STEERING Auto-Turn
DRIVE TYPE Disc-O-matic
SPEEDS 6 Forward/2 Reverse
LENGTH 58.3 In
WIDTH 26.4 In
HEIGHT 45.9 In
WEIGHT 267 lb
GEAR CASE Cast Iron
GEAR CASE WARRANTY 5 Year Consumer, 1 Year Commercial
HOUSING HEIGHT 21 In
THROWING DISTANCE 3 ft - 55 ft
CHUTE TURNING RADIUS 200
DEFLECTOR CONTROL In-Dash Lever
IMPELLER PROFILE High Speed Steel 3 Blade
IMPELLER DIAMETER 14 In
AUGER DIAMETER 14 In
AUGER TYPE Steel Serrated
SKID SHOES Steel Reversible
SCRAPER BAR Steel Adjustable
CHUTE ROTATION Quick Turn
FEATURES AT A GLANCE Light Type: LED
Reflective Decals: Standard
Handwarmers: Standard
Remote Deflector Control: Standard
Drift Cutters: Optional
One Hand Interlock: Standard
PRODUCT WARRANTY 3 years residential use. 90 days commercial use

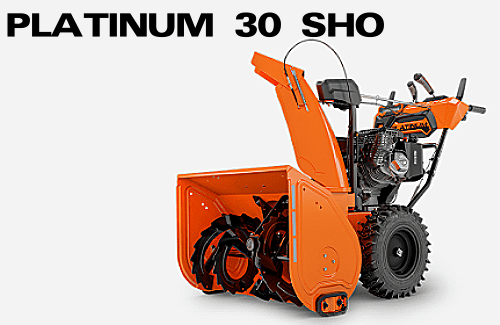

TITLE PLATINUM 30 SHO
MODEL NUMBER 921064
ENGINE Ariens AX®
STAGE TYPE Two Stage
CLEARING WIDTH (IN/CM) 30 In
STARTING SYSTEM 120v / Electric
TIRE SIZE 16 In
TIRE TYPE Directional Snow Tread
STEERING Auto-Turn
DRIVE TYPE Disc-O-matic
SPEEDS 6 Forward/2 Reverse
LENGTH 58.3 In
WIDTH 32.4 In
HEIGHT 45.9 In
WEIGHT 274 lb
GEAR CASE Cast Iron
GEAR CASE WARRANTY 5 Year Consumer, 1 Year Commercial
HOUSING HEIGHT 21 In
THROWING DISTANCE 3 ft - 55 ft
CHUTE TURNING RADIUS 200
DEFLECTOR CONTROL In-Dash Lever
IMPELLER PROFILE High Speed Steel 3 Blade
IMPELLER DIAMETER 14 In
AUGER DIAMETER 14 In
AUGER TYPE Steel Serrated
SKID SHOES Steel Reversible
SCRAPER BAR Steel Adjustable
CHUTE ROTATION Quick Turn
FEATURES AT A GLANCE Light Type: LED
Reflective Decals: Standard
Handwarmers: Standard
Remote Deflector Control: Standard
Drift Cutters: Optional
One Hand Interlock: Standard
PRODUCT WARRANTY 3 years residential use. 90 days commercial use

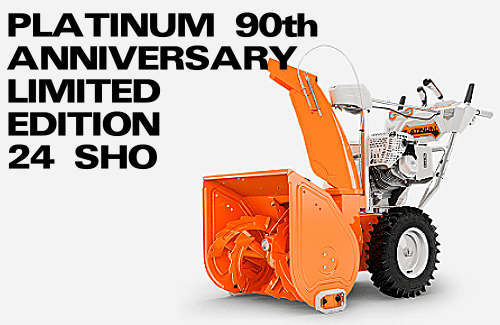

TITLE PLATINUM 90th ANNIVERSARY LIMITED EDITION - 24 SHO
MODEL NUMBER 921933
ENGINE TecumsehPower® Snow King®
STAGE TYPE Two Stage
CLEARING WIDTH (IN/CM) 24 In
STARTING SYSTEM 120v / Electric
TIRE SIZE 16 In
TIRE TYPE Directional Snow Tread
STEERING Auto-Turn
DRIVE TYPE Disc-O-matic
SPEEDS 6 Forward/2 Reverse
LENGTH 58.3 In
WIDTH 26.4 In
HEIGHT 45.9 In
WEIGHT 267 lb
GEAR CASE Cast Iron
GEAR CASE WARRANTY 5 Year Consumer, 1 Year Commercial
HOUSING HEIGHT 21 In
THROWING DISTANCE 3 ft - 55 ft
CHUTE TURNING RADIUS 200
DEFLECTOR CONTROL In-Dash Lever
IMPELLER PROFILE High Speed Steel 3 Blade
IMPELLER DIAMETER 14 In
AUGER DIAMETER 14 In
AUGER TYPE Steel Serrated
SKID SHOES Steel Reversible
SCRAPER BAR Steel Adjustable
CHUTE ROTATION Quick Turn
FEATURES AT A GLANCE Light Type: LED
Reflective Decals: Standard
Handwarmers: Standard
Remote Deflector Control: Standard
Drift Cutters: Optional
One Hand Interlock: Standard
PRODUCT WARRANTY 3 years residential use. 90 days commercial use

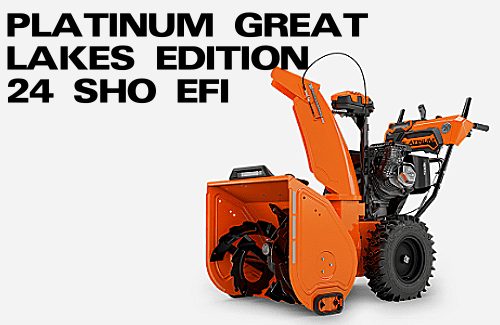

TITLE PLATINUM GREAT LAKES EDITION-24 SHO EFI
MODEL NUMBER 921066
ENGINE Ariens AX®
STAGE TYPE Two Stage
CLEARING WIDTH (IN/CM) 24 In / 61cm
STARTING SYSTEM 120v / Electric
TIRE SIZE 16 In / 40.6cm
TIRE TYPE Directional Snow Tread
STEERING Auto-Turn
DRIVE TYPE Disc-O-matic
SPEEDS 6 Forward/2 Reverse
LENGTH 58.3 In / 148.1cm
WIDTH 26.4 In / 67.1cm
HEIGHT 45.9 In / 116.6cm
WEIGHT 273 lb / 123.8 kg
GEAR CASE Cast Iron
GEAR CASE WARRANTY 5 Year Consumer, 1 Year Commercial
HOUSING HEIGHT 21 In / 53.3cm
THROWING DISTANCE 3 ft - 55 ft
CHUTE TURNING RADIUS 200
DEFLECTOR CONTROL Electric
IMPELLER PROFILE High Speed Steel 3 Blade
IMPELLER DIAMETER 14 In / 35.6cm
AUGER DIAMETER 14 In / 35.6cm
AUGER TYPE Steel Serrated
SKID SHOES Steel Reversible
SCRAPER BAR Steel Adjustable
CHUTE ROTATION Electric
FEATURES AT A GLANCE Light Type: LED
Reflective Decals: Standard
Handwarmers: Standard
Remote Deflector Control: Standard
Drift Cutters: Optional
One Hand Interlock: Standard
PRODUCT WARRANTY 3 years residential use. 90 days commercial use

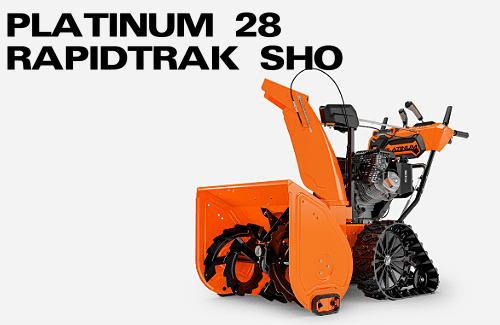

TITLE PLATINUM 28 RAPIDTRAK SHO
MODEL NUMBER 921057
ENGINE Ariens AX®
STAGE TYPE Two Stage
CLEARING WIDTH (IN/CM) 28 In / 71.1cm
STARTING SYSTEM 120v / Electric
TIRE TYPE Directional Snow Tread
STEERING Auto-Turn
DRIVE TYPE Disc-O-matic
SPEEDS 6 Forward/2 Reverse
LENGTH 58.5 In / 148.5cm
WIDTH 29.9 In / 75.9cm
HEIGHT 45.3 In / 115cm
WEIGHT 283 lb / 128.3 kg
GEAR CASE Cast Iron
GEAR CASE WARRANTY 5 Year Consumer, 1 Year Commercial
HOUSING HEIGHT 21 In / 53.3cm
THROWING DISTANCE 3 ft - 55 ft
CHUTE TURNING RADIUS 200
DEFLECTOR CONTROL In-Dash Lever
IMPELLER PROFILE High Speed Steel 3 Blade
IMPELLER DIAMETER 14 In / 35.5cm
AUGER DIAMETER 14 In / 35.5cm
AUGER TYPE Steel Serrated
SKID SHOES Steel Reversible
SCRAPER BAR Steel Adjustable
CHUTE ROTATION Quick Turn
FEATURES AT A GLANCE Light Type: LED
Reflective Decals: Standard
Handwarmers: Standard
Remote Deflector Control: Standard
Drift Cutters: Optional
Track Drive: Standard
One Hand Interlock: Standard
PRODUCT WARRANTY 3 years residential use. 90 days commercial use

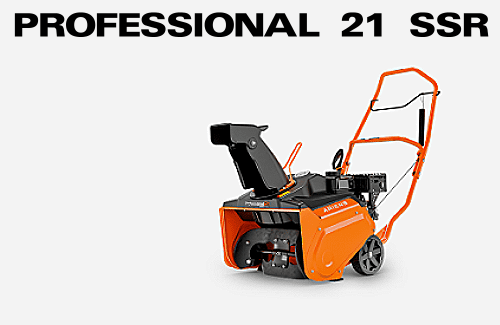

TITLE PROFESSIONAL 21 SSR
MODEL NUMBER 938024
ENGINE Ariens AX®
STAGE TYPE Single Stage
CLEARING WIDTH (IN/CM) 21 In / 53.3cm
STARTING SYSTEM Recoil
TIRE SIZE 7.5 In / 19cm
TIRE TYPE Tread Cap
DRIVE TYPE Auger Propelled
SPEEDS 1 Forward
LENGTH 50.8 In / 129cm
WIDTH 21.2 In / 53.8cm
HEIGHT 41.7 In / 105.9cm
WEIGHT 87 lb / 39.4 kg
HOUSING HEIGHT 12.2 In / 30.9cm
THROWING DISTANCE 3 ft - 35 ft
CHUTE TURNING RADIUS 210
DEFLECTOR CONTROL Manual
AUGER DIAMETER 8.4 In / 21.2cm
AUGER TYPE Reinforced Rubber
SCRAPER BAR Polymer Pivoting
CHUTE ROTATION Manual
FEATURES AT A GLANCE Smart-Lift Handlebar: Standard
PRODUCT WARRANTY 3 years residential use. 1 year commercial use

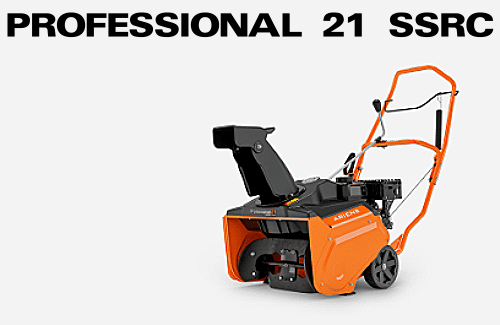

TITLE PROFESSIONAL 21 SSRC
MODEL NUMBER 938025
ENGINE Ariens AX®
STAGE TYPE Single Stage
CLEARING WIDTH (IN/CM) 21 In / 53.3cm
STARTING SYSTEM Recoil
TIRE SIZE 7.5 In / 19cm
TIRE TYPE Tread Cap
DRIVE TYPE Auger Propelled
SPEEDS 1 Forward
LENGTH 50.8 In / 129cm
WIDTH 21.2 In / 53.8cm
HEIGHT 41.7 In / 105.9cm
WEIGHT 89.2 lb / 40.4 kg
HOUSING HEIGHT 12.2 In / 30.9cm
THROWING DISTANCE 3 ft - 35 ft
CHUTE TURNING RADIUS 210
DEFLECTOR CONTROL Manual
AUGER DIAMETER 8.4 In / 21.2cm
AUGER TYPE Reinforced Rubber
SCRAPER BAR Polymer Pivoting
CHUTE ROTATION Remote
FEATURES AT A GLANCE Smart-Lift Handlebar: Standard
PRODUCT WARRANTY 3 years residential use. 1 year commercial use

TITLE COMPACT 24 RAPIDTRAK
MODEL NUMBER 920032
ENGINE Ariens AX®
STAGE TYPE Two Stage
CLEARING WIDTH (IN/CM) 24 In
STARTING SYSTEM 120v / Electric
TIRE TYPE Directional Snow Track
STEERING Auto-Turn
DRIVE TYPE Disc-O-matic
SPEEDS 6 Forward/2 Reverse
LENGTH 53.3 In
WIDTH 26.4 In
HEIGHT 44 In
WEIGHT 220 lb
GEAR CASE Cast Iron
GEAR CASE WARRANTY 5 Year Consumer, 1 Year Commercial
HOUSING HEIGHT 20 In
THROWING DISTANCE 3 ft - 40 ft
CHUTE TURNING RADIUS 205
DEFLECTOR CONTROL In-Dash Lever
IMPELLER PROFILE Steel 3 Blade
IMPELLER DIAMETER 12 In
AUGER DIAMETER 11 In
AUGER TYPE Steel Serrated
SKID SHOES Steel Reversible
SCRAPER BAR Steel Adjustable
CHUTE ROTATION 2.5x Quick Turn
FEATURES AT A GLANCE Light Type: LED
Handwarmers: Optional
Remote Deflector Control: Standard
Drift Cutters: Optional
Track Drive: Standard
One Hand Interlock: Standard
PRODUCT WARRANTY 3 years residential use. 90 days commercial use

TITLE PLATINUM 28 RAPIDTRAK SHO
MODEL NUMBER 921057
ENGIN
